Same idea as #2364, but for dbShapes and the PLC convex decomposition.

  • dbShapes.cc: layer_op::erase/redo sorts the shape vector before the erase walk.
  • dbPLCConvexDecomposition.cc: Hertel-Mehlhorn sorts the newly inserted points and, for each vertex, the edges around that vertex by angle and length.

Both sorts now use std::execution::par where the standard library supports execution policies, and stay plain std::sort where it doesn't (macOS/libc++, MSVC without TBB, C++11 builds). The guards are __cpp_lib_execution and __has_include(<execution>).

Benchmark

Two cases from the db_parallel_benchmarks Google Benchmark suite on the parallelize-rebased branch of my fork, on the same machine and with the same back-to-back serial/parallel procedure as #2365 (Xeon Gold 6248 @ 2.5 GHz, 16 cores, GCC 13.3, -O2, TBB). shapes_erase fills a flat Shapes container and erases every second polygon, which is mostly sorting. plc_decomposition runs convex decompositions of a small concave polygon (Linux only).

shapes_erase, 16384 polygons:

CPUs serial (ms) par (ms) speedup
1 5.042 4.662 1.08x
2 5.244 4.506 1.16x
4 5.246 4.276 1.23x
8 5.270 4.132 1.28x
16 5.249 4.313 1.22x

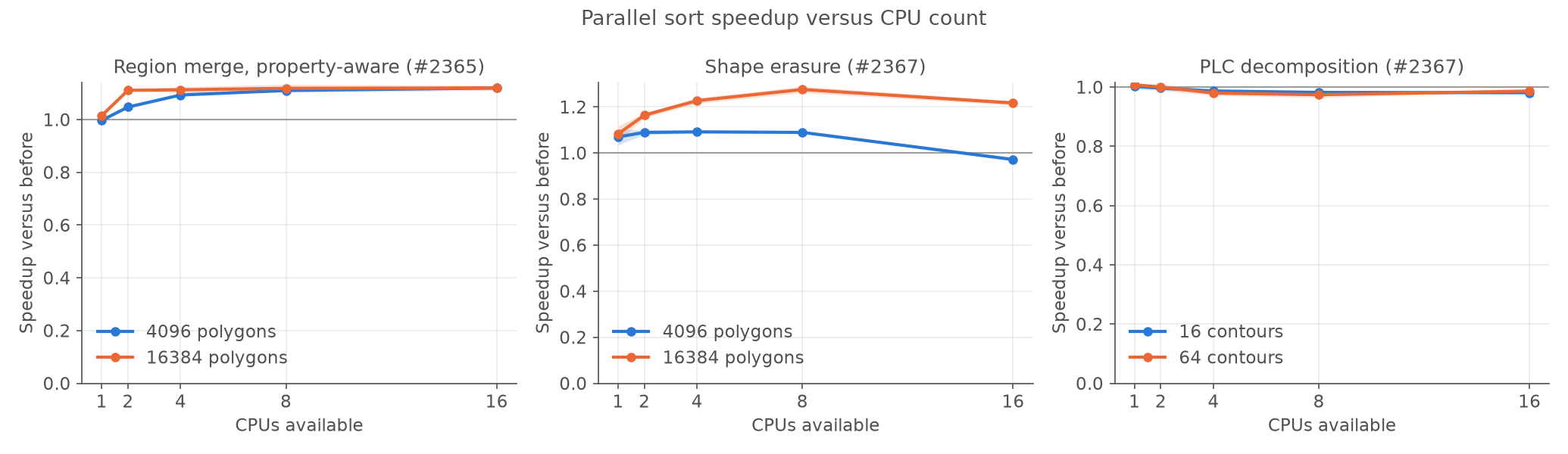

Speedup versus number of CPUs

  • The erase benefits the most: up to 1.28x at 8 cores, since the operation is nearly all sort. At 4096 polygons the gain is smaller (about 1.09x from 2 cores on) and turns slightly negative at 16 cores (0.97x), which is the parallel sort overhead on a short array.
  • The PLC sorts time the same in both builds (0.97x to 1.01x at every CPU count). Hertel-Mehlhorn sorts very small vectors (the points of one insertion step, the edges around one vertex), so there is little to parallelize. I kept that hunk for consistency with the other sorts, but it is easy to drop or guard by size if you prefer.
  • The Apple M5 run showed the same behaviour, so nothing here is x86-specific.
