@nextcloud/viewer

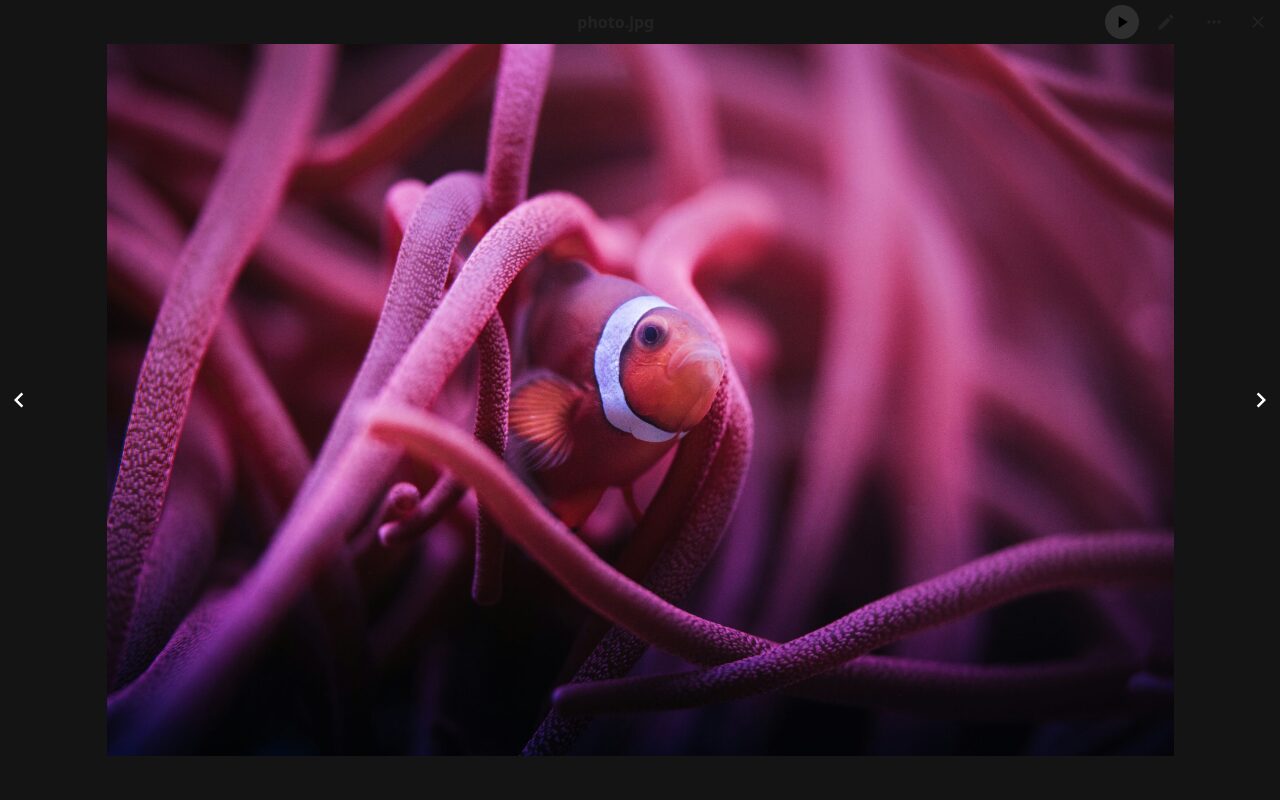

The file viewer used by Nextcloud: a modal for images, video and audio, and the API apps use to render their own file types in it. Register a handler as a custom element and your files open in the same viewer as everything else, with navigation, editing and sharing already wired up.

API documentation

npm install @nextcloud/viewer

Usage

This package covers two independent needs. Most apps only have one:

• Rendering your own file type in the viewer — register a handler so files of your mimetype open in the viewer instead of downloading.
• Opening the viewer from your own code — call getViewer(), e.g. to open an image from a dashboard widget or a search result.

Registering a handler does not require you to also open the viewer yourself, and opening the viewer does not require registering a handler.

🔍 Add your own file view

If you want to make your app compatible with this app, you can register your own handler with the methods provided by the @nextcloud/viewer npm package.

Handlers are rendered as native custom elements, not as Vue components passed directly to the viewer. You register a custom element with the browser, then reference it from your handler by its tagname.

1. Create your view component

Write a Vue component that consumes the ViewerProps props and can emit the ViewerEmits events. The viewer passes the props automatically and reacts to the emitted events.

<!-- MyView.vue -->
<template>
	<div>
		<img
			:src="src"
			:style="{ maxHeight: maxHeight + 'px', maxWidth: maxWidth + 'px' }"
			@load="emit('loaded')"
			@error="emit('errored', new Error('Could not load file'))">
	</div>
</template>

<script setup lang="ts">
import type { ViewerEmits, ViewerProps } from '@nextcloud/viewer'
import { computed } from 'vue'

const props = defineProps<ViewerProps>()
const emit = defineEmits<ViewerEmits>()

const src = computed(() => props.file.encodedSource)
</script>

ViewerProps provides:

Prop	Type	Description
file	File	The file currently displayed
files	File[]	The list of files currently opened in the viewer
maxHeight	number	Max height of the viewer container
maxWidth	number	Max width of the viewer container
editing	boolean	Whether the viewer is in editing mode
isSidebarShown	boolean	Whether the sidebar is shown

ViewerEmits lets you emit:

Event	Payload	Description
loaded	–	Notify the viewer your component is done loading
errored	[Error]	Notify the viewer an error occurred (custom message shown)
update:canSwipe	[boolean]	Enable/disable the swipe gesture (e.g. for custom controls)
update:editing	[boolean]	Notify the viewer the editing mode changed

2. Define the custom element and register the handler

Turn your component into a custom element with Vue's defineCustomElement, define it on window.customElements, then register a handler that points at it via tagname:

import MyIconSvg from '@mdi/svg/svg/file-image.svg?raw'
import { t } from '@nextcloud/l10n'
import { registerHandler } from '@nextcloud/viewer'
import { defineCustomElement } from 'vue'
import MyView from './MyView.vue'

// A valid custom element tag name: lowercase, must contain a hyphen,
// no consecutive hyphens, no leading/trailing hyphen.
const tagname = 'my-app-viewer'

// Define the custom element. `shadowRoot: false` keeps the element in the
// light DOM so Nextcloud's global styles and CSS variables apply.
const MyElement = defineCustomElement(MyView, { shadowRoot: false })
window.customElements.define(tagname, MyElement)

// Register the handler.
registerHandler({
	// Unique identifier for the handler.
	id: 'my-app',

	// Translated, human-readable name shown in the "Open with …" menu.
	displayName: t('myapp', 'My viewer'),

	// The custom element tag name registered above.
	tagname,

	// Optional inline SVG icon for the "Open with …" menu entry.
	iconSvgInline: MyIconSvg,

	// Optional group. When opening a folder, files are collected across all
	// enabled handlers sharing this group, so e.g. an image handler and a
	// video handler in the 'media' group build one combined slideshow.
	group: 'media',

	// Return true when this handler can display the given files.
	enabled: (nodes) => nodes.every((node) => node.mime === 'image/png'),

	// Optional: preload data for the previous/next files so navigation is
	// snappier. Called for neighbouring nodes when a file is opened.
	preload: async (node) => {
		await fetch(node.encodedSource)
	},

	// Optional viewer modal theme: 'dark', 'light' or 'default'.
	theme: 'default',
})

The full handler shape (see the IHandler interface):

Field	Type	Required	Description
id	string	yes	Unique, non-empty handler identifier
displayName	string	yes	Translated name shown in the "Open with …" menu
tagname	string	yes	Registered custom element tag name (must contain a hyphen)
enabled	(nodes: File[]) => boolean	yes	Whether the handler can open the given files
iconSvgInline	string	no	Inline SVG icon for the menu entry
group	string	no	Group used to combine handlers when opening a folder
preload	(node: File) => Promise<void>	no	Preload data for neighbouring files
theme	'dark' | 'light' | 'default'	no	Viewer modal theme

Gotchas:

• tagname must be lowercase, contain a hyphen, and have no leading, trailing or consecutive hyphens (e.g. my-app-viewer). An invalid one throws.
• id must be unique across every app on the page, not just your own — it is not namespaced for you. A collision does not throw: the second registration is silently dropped with a console warning, so pick something specific to your app (myapp-image, not image).
• Registering after the viewer has already read the handler list is not an error either — the handler just never appears in the "Open with …" menu. See step 3 below for why that means an init script.
• registerImplementation is exported alongside registerHandler but is not part of this API — it is what this package calls on itself to offer as the page's viewer. Apps register handlers, they don't call this.

3. Load your registration before the viewer

The handler must be registered before the viewer initializes. Load your registration script from the server side with \OCP\Util::addInitScript so it runs early enough:

\OCP\Util::addInitScript('myapp', 'myapp-viewer-register');

📦 Getting the viewer onto the page

Nothing, beyond loading your own registration script. There is no event to dispatch and no viewer script to add: the copy of the library your app bundles offers itself as the page's viewer, and whichever copy wins is loaded the first time a file is opened.

\OCP\Util::addInitScript('myapp', 'myapp-viewer-register');

See how a page ends up with one viewer for what happens between those two sentences.

🚀 Open the viewer programmatically

If you are not registering a handler, no server-side setup is needed. A plain import { getViewer } from '@nextcloud/viewer' in your regular bundle is enough — no \OCP\Util::addInitScript required, the server always ships a copy of its own.

Only call open() in response to an actual user interaction, not eagerly at import or mount time — see how a page ends up with one viewer for why that matters.

Use the public getViewer() API to open the viewer from your own code. It returns a shared Viewer instance:

import { getViewer } from '@nextcloud/viewer'

const viewer = getViewer()

// Open a list of files, optionally starting on a specific file and forcing a
// specific handler by its id. Next and previous follow the order of this list.
await viewer.open(files, files[0], options, 'my-app')

// Open every viewable file of a folder, ordered by name like the files list.
await viewer.openFolder(folder, file, options, 'my-app')

// Open two files side by side for comparison.
await viewer.compare(file1, file2, 'my-app')

Signatures:

• open(nodes: File[], file?: File, options?: ViewerOptions, handlerId?: string): Promise<void>
• openFolder(folder: Folder, file?: File, options?: ViewerOptions, handlerId?: string): Promise<void>
• compare(node1: File, node2: File, handlerId?: string): Promise<void>
• close(): void

Ordering

The viewer never reorders a list you give it. open() steps through nodes in the order you pass them, so a list taken from the files list is stepped through in whatever order the user has it sorted, including a sort the viewer knows nothing about. Pass the list you are showing, not a list you have re-sorted.

openFolder() is the exception, because it fetches the folder itself and a WebDAV reply has no order worth relying on. It asks the files list how the user has it sorted and sorts the folder the same way, so paging through it matches what the user would see in the list. A public share has no such setting, and neither does a request that fails: both fall back to names ascending.

ViewerOptions lets you hook into navigation and paging:

Option	Type	Description
loadMore	() => Promise<File[]>	Called to append more files when reaching the end of the list
onPrev	() => void	Called when navigating to the previous item
onNext	() => void	Called when navigating to the next item
onClose	() => void	Called when the viewer is closed
canLoop	boolean	Whether navigation loops from last to first item and vice versa

🧭 Migrating from OCA.Viewer

The OCA.Viewer global is gone. Everything is imported from the @nextcloud/viewer package instead, and the viewer works with @nextcloud/files nodes rather than the fileinfo objects and path strings it used to take.

Before	Now
OCA.Viewer.open({ path })	getViewer().openFolder(folder, file)
OCA.Viewer.open({ path, list })	getViewer().open(nodes, file)
OCA.Viewer.open({ fileInfo, list })	getViewer().open(nodes, file)
OCA.Viewer.openWith(id, { … })	getViewer().open(nodes, file, options, id)
OCA.Viewer.compare(fileInfo1, fileInfo2)	getViewer().compare(node1, node2)
OCA.Viewer.close()	getViewer().close()
OCA.Viewer.mimetypes.includes(node.mime)	canView(node)
OCA.Viewer.mimetypesCompare.includes(node.mime)	canView(node)
OCA.Viewer.availableHandlers	getHandlers(), or canView(node) to test one file
OCA.Viewer.registerHandler({ component })	registerHandler({ tagname }), see above
canCompare: true on a handler	nothing, any handler can be compared
\OCP\Util::addScript for the registration	\OCP\Util::addInitScript

Inside a handler, what used to be read off the global comes in as props:

Before	Now
OCA.Viewer.file	the file prop
OCA.Viewer.list	the files prop
OCA.Viewer.enableSidebar	the isSidebarShown prop
OCA.Viewer.loadMore	no equivalent, the viewer calls it and handles the list

Two changes are worth calling out because they are not a rename:

Handlers are custom elements now, not Vue components handed to the viewer. A handler names a tagname you have defined on window.customElements, which is what lets the viewer render a handler written in any framework, or none. The registration section walks through it.

Lists and files are @nextcloud/files nodes. There is no path-based entry point any more: build the nodes you already have, or hand openFolder() a folder and let it fetch. fileinfo objects are not accepted.

Tip

If you feel like your mime should be integrated in this repo, you can also create a pull request with your handler in the models directory and its view in the components directory. Please have a look at what's already here and take example of it (e.g. models/videos.ts + components/Videos.vue). 🙇‍♀️

🧩 How a page ends up with one viewer

Several apps on a page can each bundle this library, at different versions. They must still end up sharing one viewer: it is a modal on document.body that owns the history entries, the focus trap and the keyboard handling, and two of them fighting over those is a bug you can see.

So importing the package does not load a viewer. It registers a candidate:

registerImplementation({ version: __VIEWER_VERSION__, load: () => import('./mount.ts') })

Registering costs nothing, and the losing copies never fetch their implementation chunk at all. The first time something opens a file, the newest registered candidate is loaded and mounted, once, and every other copy on the page delegates to it.

Newest, rather than the first to register: script order across apps is not something anyone controls, so electing the first to arrive would mean the viewer behaves differently depending on which app's bundle happened to load first.

The handler registry and the elected viewer live under a window key named for the handler ABI, not for this package's version:

window._nc_viewer_scope.handlers_v1

Keying it by package version would split the registry on every major release, and since there is only one viewer, a split registry means handlers that quietly never open. The key moves only when the shape of IHandler itself breaks, at which point the two generations genuinely cannot share a viewer.

Copies within a major are compatible, so the newest simply wins and nothing is said about it. Copies from different majors are worth a word: the library warns in the console, naming what it found and which one will run. Only one of them can, and the apps that pinned the other expect behaviour it may not have.

The election happens once, on the first call to open(), openFolder() or compare() — whichever candidate is newest at that moment wins, and every handler registration script on the page runs synchronously during page load, so by the time a user can click anything, every candidate is already in. Calling open() yourself before that point, e.g. eagerly at import or mount, can elect a viewer before every app has had the chance to register its handlers.

The entry is kept small on purpose, and npm run check:size fails the build if that stops being true: it walks what the entry reaches without a dynamic import and checks it against a budget. A single top-level import of a component is enough to put the whole viewer back on every page of every consumer, and nothing else would complain.

Two consequences worth knowing:

• Registering a handler is cheap. It costs the handler definition, not the viewer, so apps can register on every page without paying for it.
• The server ships a copy too. That copy is the floor: always present, always patchable by a server update, and beaten by any app that ships a newer one.
